Sort Description:Amass XT9PW Battery Connector special design for PCB board. Genuine Amass brand from the original inventor and patent holder of the XT90PW connector.
Made from high temperature nylon and featuring gold plated 4.5mm spring connectors, the XT90PW provides a solid connection for applications up to a constant 45 amps and peak 90amps.
Excellent connector solution for RC Quadcopters, UAVs, Drones, Airplanes and Jets, Cars and Trucks, as well as RC Boats.
Features:- Special for PCB
- Made From High Temperature Nylon Provides Solid and Reliable Connection
- Excellent for High Current Applications Rate up to 90A Continuous
Specifications:
Contact Material: Brass, Gold-Plated
Housing Material: PA
Plug Sizes: 4.5mm Banana
Rated Voltage: DC 500V
Current: max 45 Amps
Peak Current: 90Amps
Temperature: -20 °C to +120 °C
Electrical Resistance: 0.30 mΩ
FR: Level: UL94 VO
Wiring Method: Welded
Recommended Usage: 1000 times
What you Get:

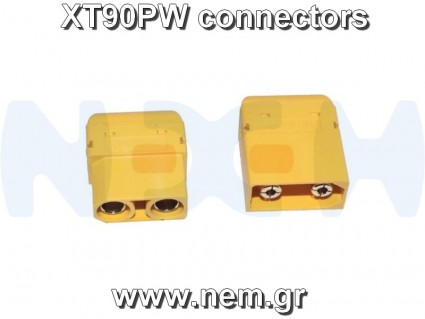

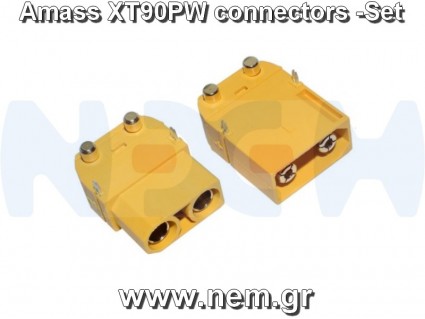

1 x Set (Female-Male) Amass XT90PW Connectors
