Connector SH 3.5mm Gold Plated -Set





New Product





Connector SH 3.5mm Gold Plated -Set
0.75€
Ex Tax: 0.75€
Your shopping cart is empty!
These connectors made from the high quality materials to ensure you get the best connection. These connectors designed for RC applications, ESC, Battery, Motor and etc..
Specifications:

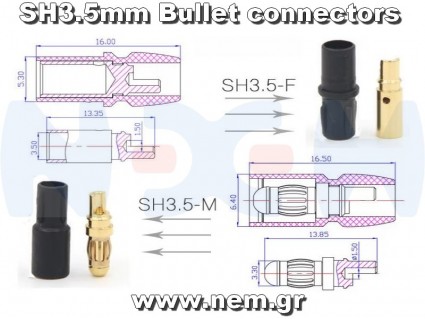

Connector Type: 3.5mm Bullet Banana type
Housing Material: Plastic
Contact Material: Brass, Gold Plated
Recommend cable spec.: 14AWG ~ 16AWG
Max Current: 30A
Peal Current: 50A
Internal resistance: 0.50mΩ
Pulling force/500 :25N
Recommend time:1000 times
Soldering Spec approx.: 480° for 4S
Weight: 8 grams
What you Get:

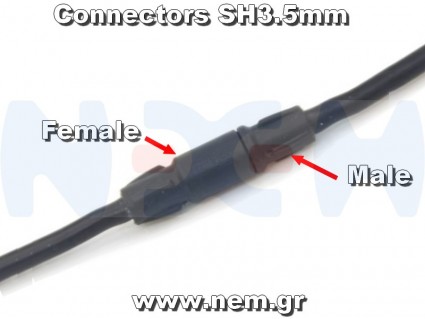

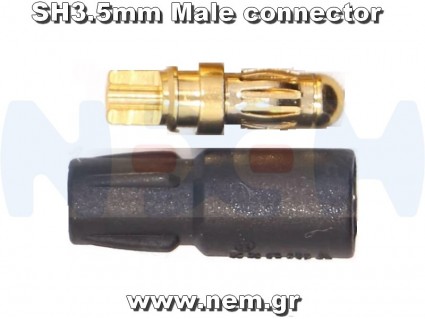

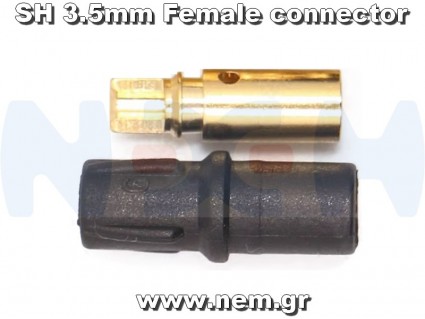

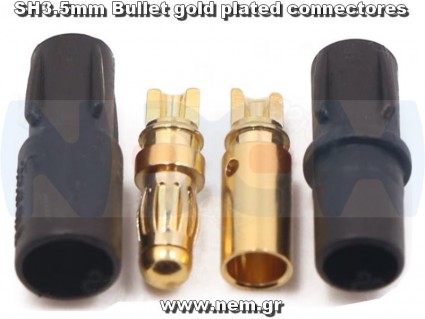

1 x Set (female-Male) SH3.5mm Bullet connectors
Technical Information | |
Assembly | For Battery use Female Bullets. For ESC's, Charger, etc. use Male Bullets. Solder the bullets with cable and then (wear) your shrinktube |
Recommended | Use with Silicone Cable (14~16AWG/0.5mtr.) power up to for connectors 65A (with 12AWG) constant current |
Product Information | |
Color | gold |
Product Specification | |
Material | gold coated copper (plug) |
