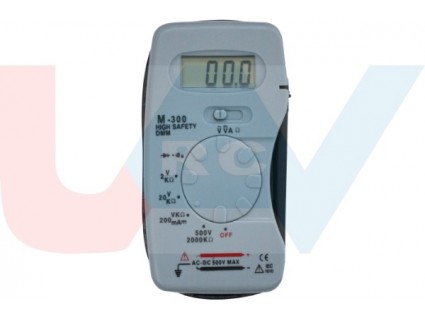

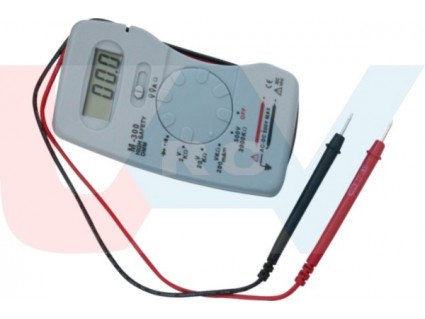

Digital Multimeter Pocket Size

Digital Multimeter Pocket Size
  • Stock: In Stock
  • Model: GT-DMM300
Views 5206
8.13€
Ex Tax: 8.13€

This compact digital multimeter is designed to measure AC and DC voltages, DC current, Resistance, Diode and to perform audible continuity checks with accuracy and easy.

Features:
Maximum voltage 500VDC and 500VAC
Fuse protection: F 250mA/250V
Power supply: 12V battery. GP-23AX1
Display: LCD.1999 counts .update 2-3/sec
Measuring method: dual-slope integration A/D converter
Over range indication: only figure "1" on the display
Polarity indication: " - " displayed for negative polarity
Operating temperature: 0℃ to 40℃(32℉ to 104℉)
Storage temperature: -10℃ to 50℃ (10℉ to 122℉)

What you Get:
1 x M300 Digital Pocket Multimeter

Technical Information
Supported Low battery indication: Appears on the display
Power Informations
Voltage - CurrentDC Voltage: 2V + - (0.5%+1), 20V/200V/500V +- (0.8%+1), AC Voltage: 200V/500V +- (1.2%+10), DC Current: 200mA +- (2.0%+2)
ResolutionResistance: 2KΩ/20KΩ/200KΩ/2MΩ +- (1.0%+2)
Size and Weight Informations
Size (L * W * H) Size: 120 x 70 x 18mm
WeightApprox.110g
