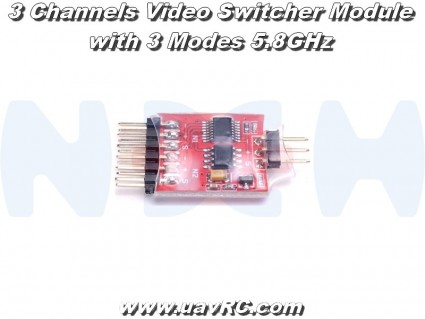

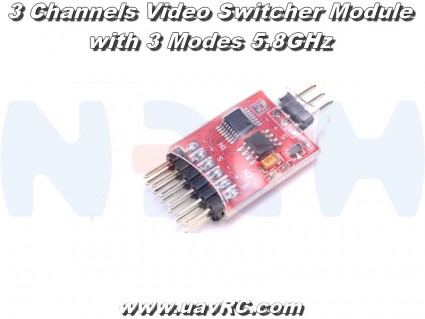

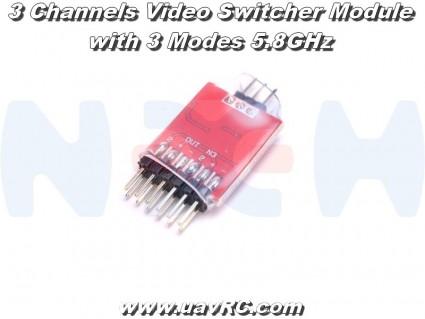

Video Switcher Module 3 channels 3 way
  • Stock: In Stock
  • Model: FPV-VS3CH
  • Weight: 130.00g
150 samples sold
1833 views
9.30€
Ex Tax: 7.50€
Features:
This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station. If you have multiple cameras on your plane, this is what you need.
3 channel Switchover module,adopts high speed video switch chip,effectively reduce the vibration of the Video image.
The control channel can be any proportional channel or 3-position switch channel. (2-position switch channel can only switch within two video input signals

Specifications:
-Model: PV3IN1
-Size: approx. 4.0*1.8*0.5cm
-Input voltage: 4.8-6V
-Input channels:3
-Output channel: 1
-Video signal impedance: 75Ω

Attn:
Port ""in"" is video signal input,IN1,IN2,IN3,OUT is video output ""-"" is negtive pole,""+"" suspend,""S"" is receiving Video signal

What you Get:
1 x Video Switcher 3 Channeles 3 Modes
