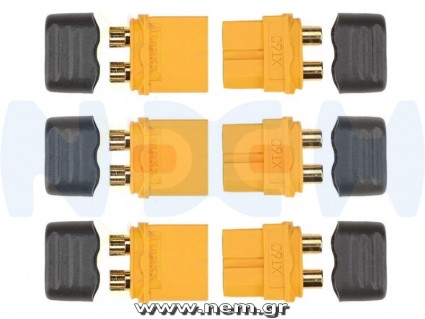

Amass XT60L connector set x3 Pairs

Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
New Product
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
Amass XT60L connector set x3 Pairs
  • : In Stock
  • Model: PCP-AMA-XT60L3P
  • Shipping from: Greece
Products Sold: 0
views 200
5.27€
Ex Tax: 4.25€
Features:
- Suitable for connecting ESCs and motors
- With protective sleeve
- Assistive weld foot, more stable

Specifications:
Brand Name: Amass
Item Name: XT60 connector with plastic cases
Body Material and Surface Plating: Brass and gold plated Insulation
Material: PA66
Original Internal Resistance: 0.8MΩ 500 Times
Internal Resistance: 0.85MΩ
Max. Continuous Current: 60A
Max. Instantaneous Current: 100A (within 1 minitues)
Recommended Cable Spec: 12AWG / diameter 4.5mm up to 14AWG / diameter 3.5mm
Recommended Soldering Spec: 400° C/3S
Temperature Resistance: -20°C~120°C
Insulation Degree: UL94V-0
Machine Life: 3000 Times
Pulling Force/600: 3kgs
Weight: 7.72g / set

What you Get:
3 x Set Amass XT60L connectors (Female & Male)
6 x Protective cable sleeve

Technical Information
RecommendedUse them with Silicone Cable (12 -14AWG/0.5mtr.) Perfect for applications up to 60 Amps
Product Information
ColorYellow
Product Specification
Temperature (celcius)Temperature Resistance: -20°C ~ 120°C
MaterialHigh Temp. synthetic plastic (case) & gold coated copper (plug)
Size and Weight Informations
WeightWeight: 7.72g / set
