Connector EC6 Gold Plated 6.0mm -Set

Connector EC6 Gold Plated 6.0mm -Set
  • Stock: In Stock
  • Model: CP-EC6S
Views 1436
2.79€
Ex Tax: 2.25€

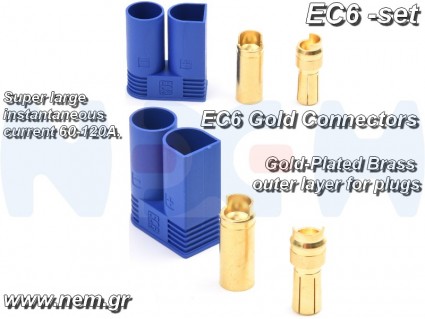

Brass with Gold Plated Connector 6mm Bullet

EC6 connectors, including
:

  • One high quality plastic case (female) made by Polyamide

  • One high quality plastic case (male) made by Polyamide

  • Two high quality bullet Brass Female connectors 6.0mm Gold Plated

  • Two high quality bullet Brass Male connectors 6.0mm Gold Plated

These connectors are finest Quality capable for 120A Peak Currents with -0.8~12 AWG cables.

Specifications:
- Contact Material: Brass with Gold plate
- Mechanical Durability: 1000 cycles
- Body Material: Polyamide, fire-retardant PA66
- Mechaniocal Mounting: for cables
- Wire size: up to 0.8~12AWG
- Electrical Mounting: Soldered (480° celcius /4 seconds)
- Rated Voltage: 500 Volts
- Current Rating: 60 Amps
- Flammability Rating: UL94V-0
- Operating Temperature: -20 up to +120 celcius
- Color: Blue
- Weight approx.: 15 grams set

What's in the Box:
1 x Set EC6 connectors blue color

* Please note that photographs may not accurately represent the number of items per package, size, color or features of a product.

Technical Information
AssemblyFor Battery use Female Bullets. For ESC's, Charger, etc. use Male Bullets. Attn.: Usually Squared Off Housing is Positive and Round Off housing is Negative
RecommendedUse with Silicone Cable (10AWG/0.5mtr.) Use with Silicone Cable (10~12AWG/0.5mtr.) Perfect for applications up to and beyond 120A continuous draw
Product Information
ColorBlue
Product Specification
MaterialHigh Temp. Nylon (case) & gold coated copper (plug)
