ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat

ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat
ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat
New Product
ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat
ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat
ZMR 8A V3 UBEC, 2-8S Lipo, for RC Drones, FPV, Planes, Boat
  • : In Stock
  • Model: EVR-ZMR3V
  • Shipping from: Greece
Products Sold: 0
views 469
29.76€
Ex Tax: 24.00€

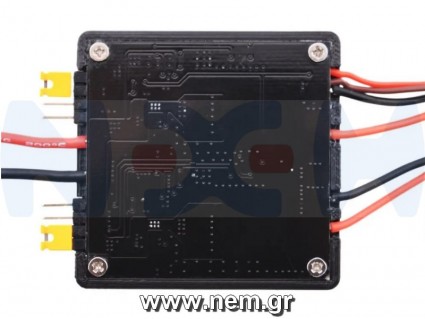

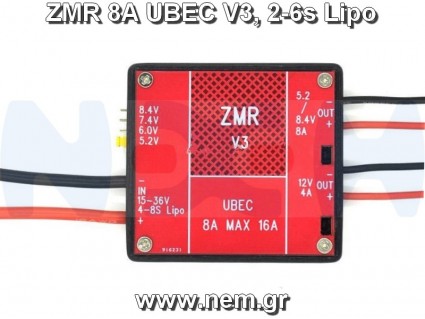

ZMR UBEC V3 8A for RC-Drones, Planes, Boats, etc..

Sort Discription:
Suitable for multi-rotor aircraft, fixed-wing, FPV, high-power image transmission, etc. (If 12V voltage is required, the input voltage must be higher than 12V) No external power-off switch is included. Switching technology to gain a much higher efficiency than a linear BEC, this means less heat and longer battery life. The UBEC is equiped with a noise reduction alloy housing to reduce noise even further

Features:
- Over-current and over-heat protection
- Conversion efficiency is over 93%
- Reduces electromagnetic interference, ensure the normal operation of the receiver
- LED Indicator for normal state is always on.
- External power-off switch, which is more convenient to use. When this switch is not needed, it can be removed directly.
- Silicone Wires for Input and Output

Specifications:
Input voltage: 4-8S LiPo (15-36V)
Output voltage: One way 12V fixed output. Another way 5.2V/6V/7.4V/8.4 route is optional
Output Current: 5.2 - 8.4V: 8A Instantaneous 16A 12V: Continuous 4A Instantaneous 6A
Input wire: AWG16, Output wire: AWG22
Dimensions: 49x46x11.5mm
Weight: 50g

What you Get:
1 x ZMR V3 UBEC 8A

Notes: When using 12V output, please use Lipo above 4s.
Product Information
TipsInstall your UBEC at least 10cm away from your Receiver or Flight Controller to Avoid Electromagnetic Interferences. Use Ferrite bead for RF in the output cable of UBEC (attach it 2cm away from Receiver).
Power Informations
Output Current8A Instantaneous 16A
Output VoltageOne way 12V fixed output. Another way 5.2V/6V/7.4V/8.4 route is optional.
Voltage5.5V-36V (2-8S Lipo
Size and Weight Informations
Size (L * W * H)49X46X11.5mm
Weight50g
